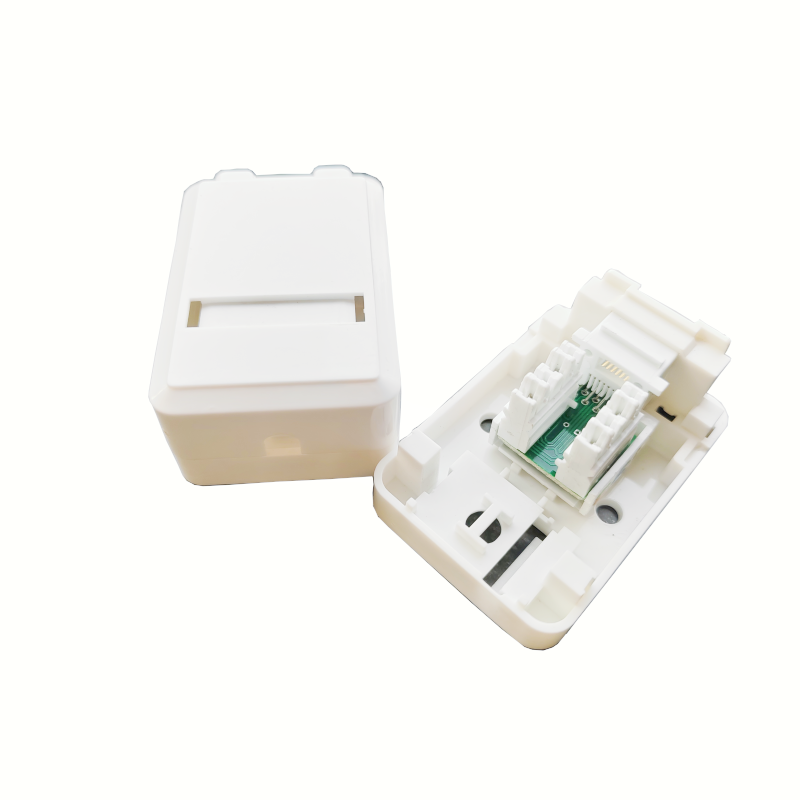

Cat.6 RJ45 2Port Surface Mount Box with P.C.B Jack

Product Description

1port /2 ports Cat5e/Cat6 RJ45 Surface Mount Box ( jack,wall outlet)

CAT5e/CAT6 surface mount boxes are designed to provide excellent performance which exceeds the industry standard TIA/EIA 568-B/A standard making these jacks perfect for use in today’s high speed networks while remaining completely backwards compatible with all previous standards.


返回列表

Materials:

1.Housing: ABS

2.IDC: PC

3.PCB: FR-4 1.6 mm (0.06") thick, 2 layers

4.Dual Port RJ45 surface mount box.

5.With adhesive sticker to use easily.

6.Waterproof, Tooless type.

7.size:27*58.5*60mm

8.1pc/bag 500pcs per carton


UTP cat5e keystone jack fit for connecting application of communication prosjects in working area.

Connection type:both FCC connector for RJ45 patch cord.

Fitting for the cate5e general cable distribution system


3u~50u gild plating available

ABS material

Size:62*65*31mm

Fluke test report available

OEM service available


Electrical characteristics:

Current rating: 1.5 A max
Voltage rating: 150 V
Contact resistance: 20 mOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz 1min
